MtiTekFlow | jBPM - A simple unit test example
  1. The project structure
  2. The POM file (pom.xml)
  3. sample.bpmn
  4. kmodule.xml
  5. logback-test.xml
  6. ProcessTest.java

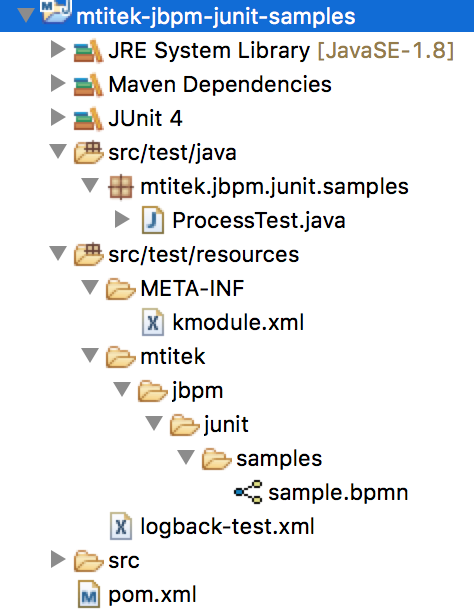

  1. The project structure
    mtitek-jbpm-junit-samples
  2. The POM file (pom.xml)
    <?xml version="1.0" encoding="UTF-8"?>
    <project xmlns="http://maven.apache.org/POM/4.0.0"
        xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
        xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">

        <modelVersion>4.0.0</modelVersion>

        <groupId>mtitek.jbpm.junit.samples</groupId>
        <artifactId>mtitek-jbpm-junit-samples</artifactId>
        <version>1.0.0-SNAPSHOT</version>

        <dependencies>
            <dependency>
                <groupId>org.jbpm</groupId>
                <artifactId>jbpm-test</artifactId>
                <version>7.28.0.Final</version>
                <scope>test</scope>
            </dependency>

            <dependency>
                <groupId>org.kie</groupId>
                <artifactId>kie-api</artifactId>
                <version>7.28.0.Final</version>
                <scope>test</scope>
            </dependency>

            <dependency>
                <groupId>org.slf4j</groupId>
                <artifactId>slf4j-api</artifactId>
                <version>1.7.28</version>
                <scope>test</scope>
            </dependency>

            <dependency>
                <groupId>ch.qos.logback</groupId>
                <artifactId>logback-classic</artifactId>
                <version>1.2.3</version>
                <scope>test</scope>
            </dependency>

            <dependency>
                <groupId>junit</groupId>
                <artifactId>junit</artifactId>
                <version>4.12</version>
                <scope>test</scope>
            </dependency>
        </dependencies>

        <build>
            <plugins>
                <plugin>
                    <groupId>org.apache.maven.plugins</groupId>
                    <artifactId>maven-compiler-plugin</artifactId>
                    <version>3.8.1</version>

                    <configuration>
                        <source>1.8</source>
                        <target>1.8</target>
                    </configuration>
                </plugin>
            </plugins>
        </build>
    </project>
  3. sample.bpmn
    sample.bpmn

    ► src/test/resources/mtitek/jbpm/junit/samples/sample.bpmn

    <?xml version="1.0" encoding="UTF-8"?>
    <definitions id="Definition"
        targetNamespace="http://www.jboss.org/drools"
        typeLanguage="http://www.java.com/javaTypes"
        expressionLanguage="http://www.mvel.org/2.0"
        xmlns="http://www.omg.org/spec/BPMN/20100524/MODEL"
        xmlns:bpmndi="http://www.omg.org/spec/BPMN/20100524/DI"
        xmlns:dc="http://www.omg.org/spec/DD/20100524/DC"
        xmlns:di="http://www.omg.org/spec/DD/20100524/DI"
        xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
        xsi:schemaLocation="http://www.omg.org/spec/BPMN/20100524/MODEL BPMN20.xsd">

        <process id="mtitek.jbpm.junit.samples.hello" name="Hello jBPM World" processType="Private" isExecutable="true">
            <startEvent id="startEventId" />

            <scriptTask id="scriptTaskId" name="Hello">
                <script>System.out.println("Hello jBPM World!!!");</script>
            </scriptTask>

            <endEvent id="endEventId">
                <terminateEventDefinition />
            </endEvent>

            <sequenceFlow id="startEvent-scriptTask" sourceRef="startEventId" targetRef="scriptTaskId" />
            <sequenceFlow id="scriptTask-endEvent" sourceRef="scriptTaskId" targetRef="endEventId" />
        </process>

        <bpmndi:BPMNDiagram>
            <bpmndi:BPMNPlane bpmnElement="mtitek.jbpm.junit.samples.hello">
                <bpmndi:BPMNShape bpmnElement="scriptTaskId">
                    <dc:Bounds x="96" y="16" width="80" height="48" />
                </bpmndi:BPMNShape>

                <bpmndi:BPMNShape bpmnElement="startEventId">
                    <dc:Bounds x="30" y="22" width="36" height="36" />
                </bpmndi:BPMNShape>

                <bpmndi:BPMNShape bpmnElement="endEventId">
                    <dc:Bounds x="210" y="22" width="36" height="36" />
                </bpmndi:BPMNShape>

                <bpmndi:BPMNEdge bpmnElement="startEvent-scriptTask">
                    <di:waypoint x="66" y="40" />
                    <di:waypoint x="96" y="40" />
                </bpmndi:BPMNEdge>

                <bpmndi:BPMNEdge bpmnElement="scriptTask-endEvent">
                    <di:waypoint x="176" y="40" />
                    <di:waypoint x="210" y="40" />
                </bpmndi:BPMNEdge>
            </bpmndi:BPMNPlane>
        </bpmndi:BPMNDiagram>
    </definitions>
  4. kmodule.xml
    ► src/test/resources/META-INF/kmodule.xml

    <kmodule xmlns="http://www.drools.org/xsd/kmodule">
        <kbase name="kbase" packages="mtitek.jbpm.junit.samples" />
    </kmodule>
  5. logback-test.xml
    ► src/test/resources/logback-test.xml

    <configuration>
        <appender name="console" class="ch.qos.logback.core.ConsoleAppender">
            <target>System.out</target>

            <encoder>
                <pattern>[%d{HH:mm:ss,SSS}] %p [%c: %L] %m%n</pattern>
            </encoder>
        </appender>

        <logger name="mtitek.jbpm.junit.samples" level="debug" />

        <root level="debug">
            <appender-ref ref="console" />
        </root>
    </configuration>
  6. ProcessTest.java
    ► src/test/java/mtitek/jbpm/junit/samples/ProcessTest.java

    package mtitek.jbpm.junit.samples;

    import org.jbpm.test.JbpmJUnitBaseTestCase;
    import org.junit.Test;
    import org.kie.api.runtime.KieSession;
    import org.kie.api.runtime.manager.RuntimeEngine;
    import org.kie.api.runtime.manager.RuntimeManager;
    import org.kie.api.runtime.process.ProcessInstance;
    import org.slf4j.Logger;
    import org.slf4j.LoggerFactory;

    public class ProcessTest extends JbpmJUnitBaseTestCase {
        private static final Logger LOG = LoggerFactory.getLogger(ProcessTest.class);

        @Test
        public void test() {
            ProcessTest.LOG.debug("jBPM unit test sample");

            final RuntimeManager runtimeManager = createRuntimeManager("mtitek/jbpm/junit/samples/sample.bpmn");
            final RuntimeEngine runtimeEngine = getRuntimeEngine(null);
            final KieSession kieSession = runtimeEngine.getKieSession();

            final ProcessInstance processInstance = kieSession.startProcess("mtitek.jbpm.junit.samples.hello");

            assertProcessInstanceNotActive(processInstance.getId(), kieSession);
            assertNodeTriggered(processInstance.getId(), "Hello");

            runtimeManager.disposeRuntimeEngine(runtimeEngine);
            runtimeManager.close();
        }
    }
